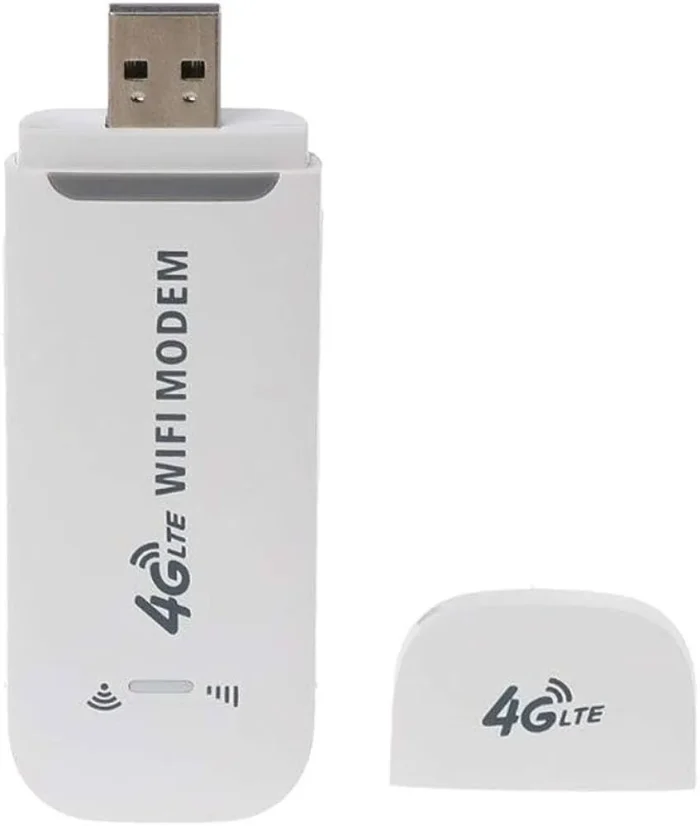

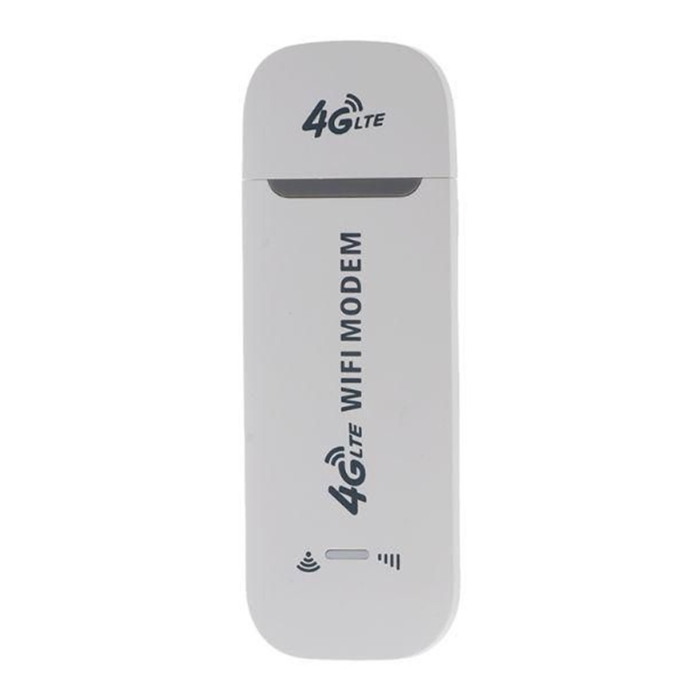

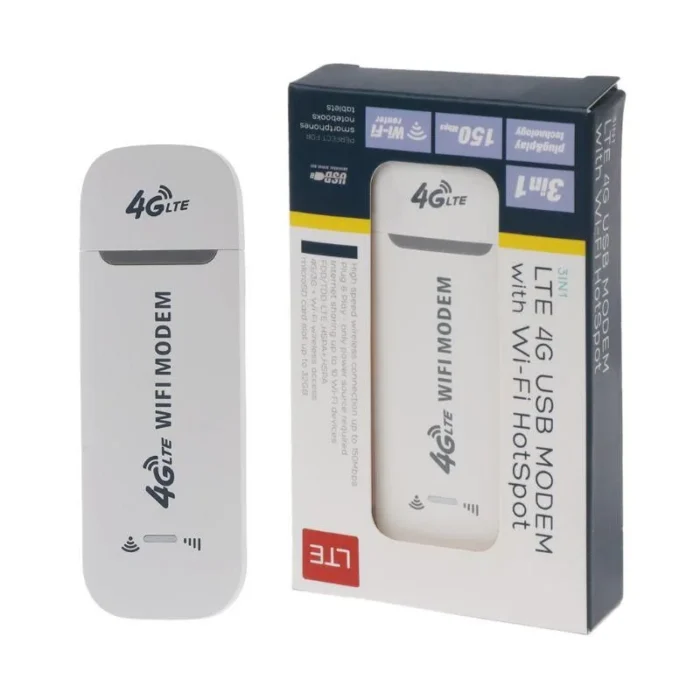

4G LTE USB MODEM with Wi-Fi HotSpot

4G USB Wifi Modem

Specification:

• Chip: Qualcomm 9200
• High speed data rate: Down-link speed 100Mbps / Up-link speed 50Mbps
• Supports external memory via MAX. 16G TF card ( Not included )

Frequency bands for option:

-(4G) LTE FDD:B1/3 (2100/1800Mhz)
-(3G) DC-HSPA+/HSPA+/UMTS:900/2100MHz
-(2G) GSM/GPRS/EDGE:850/900/1800/1900MHz

Technology standard:

• HSPA+: 3GPP Release6, up to 11Mbps UL, category 7
• HSPA+: 3GPP Release, up to 42Mbps DL, category 7/8
• EDGE: 3GPP Release4, up to 384Kbps DL and UL
• GSM: 3GPP Release 4, Multislot class 12, up to 237Kbps
• GPRS: 3GPP Release4, Multislot class 10, up to 85.6Kbps
• DC-HSPA+: 42Mbps DL / 5.76Mbps UL
• FDD LTE: 100Mbps DL / 50Mbps UL

External interface:

• USB: standard USB interface
• USB speed: USB 2.0
• Power mode: powered by USB interface
• SIM / USIM：standard 6 Pin SIM card interface, compliant with 3GPP 31.101 and 31.102
• AT interface: 3GPP TS 27.005 and 27.007
• OS support: Windows 2000 / XP / VISTA; 32 and 64bit Win7 / 8
• APN auto management supported
